PRODUCT  DESCRIPTION

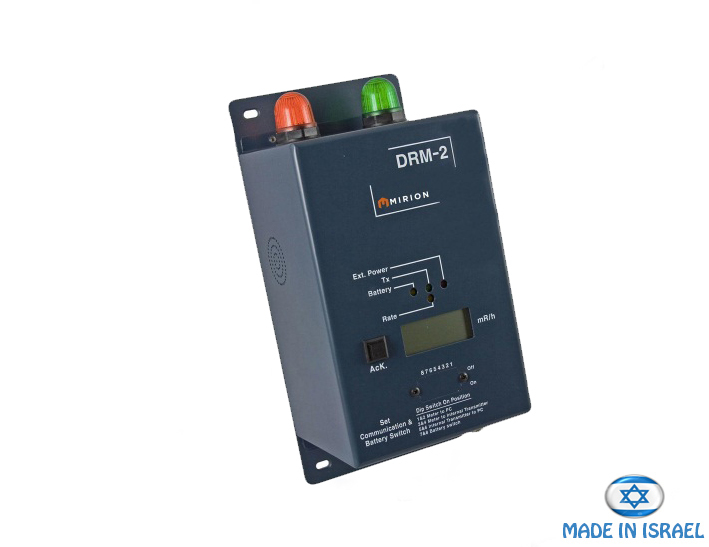

The DRM-2D is a highly sensitive Monitor, based on a CsI(Tl) Scintillator, (30x30mm) crystal optically coupled to PMT with 0.5 mm aluminum  housing and solid Mu Metal shield, designed to be continuously used in areas where exposure levels are required to be monitored.
The instrument is powered by an external AC source with NiMH backup batteries for backup. Two flashing LED’s on the cover of the monitor show the radiation and communication statuses, while another two LED’s display the power origin (AC Power or Batteries).

PRODUCT  FEATURES

Measuring Range: 0.01 uSv/h to 100 uSv/h (0.001 mR/h to 10 mR/h )
Sensitivity: 6.8 cps/uR/hr (137Cs)
Accuracy: ±10% of reading within measuring range
Units: mR and mR/hr or μSv and μSv/hr
Power Source: External AC Power backed up by two NiMH batteries
Operation: -10oC to +50oC (15oF to 122oF)
Storage: -20oC to +60oC (-5oF to 140oF)
Humidity Range: 10% to 95% RH (non condensing)
Case: Blue anodized aluminum
Dimensions: Meter:123mm W x 110 mmL x 191mmH (4.8" x 4.3" x 7.5")
Weight: 1.22 Kg (2.7 lbs)
Radio Frequencies: 900 MHz FHSS or 2.4 GHz FHSS
