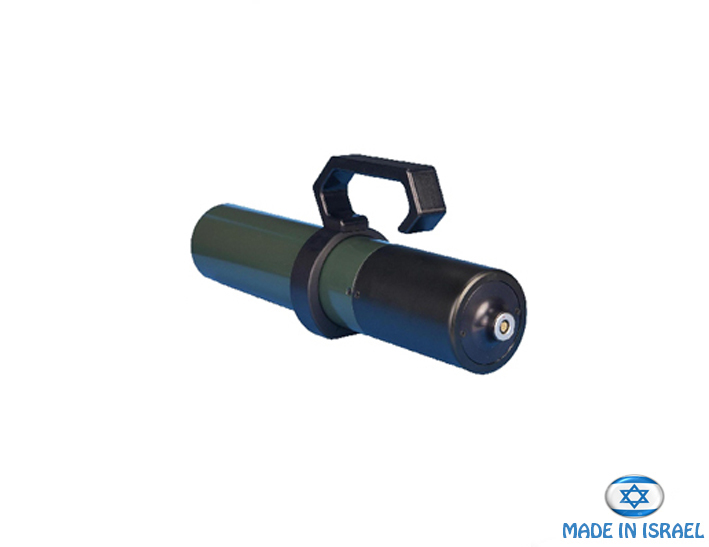

RAM R-200 Modular Radiation Survey Meter & External Probes--RP-11
RP-11
PRODUCT DESCRIPTION
Radiation Detected: Gamma above 50 keV
Scintillator: NaI(Tl) 2" diameter, 2" thick. Window of 1 mm. (0.04") Al.
Sensitivity: 137Cs: 20,000 cps/mR/h
Energy Calibration: Software calibrated single channel analyzer (SCA).
Count Rate Range: 0 to 50,000cps
Output Signals: RS-232 or RS- 485 and TTL pulses.
Temperature Range: -30oC to +60oC (-22oF to +140oF)
Humidity Range: 10% to 95% RH (non condensing)
Dimensions: 340mm (13.4") length, 70mm (2.75") Diam.
Weight: 1.75kg (3.9lbs)
Casing: Aluminum, splash proof, IP-65
Max. Cable Length: TTL pulse - 100 m, RS-232 - 12 m, RS-485 - 1.2 k
